Fiber Dispatch 4 PTZ 12G

  • $3,990.00
    Unit price per
Tax excluded. Prices are in USD.

🟢 In Stock . Ships within 24-48 hours.
🟠 On Back-Order. Contact us for lead time.


NEW RELEASE!

Pre-Order Today to ship : early April 2024.

Shipping, Taxes & Duties

Shipments are sent through DHL Express. Orders are shipped from our warehouse in Europe. International orders may be subject to customs duties, taxes, and fees required for the shipment’s entry into the destination country.

Customs, duties and taxes vary from country to country and are out of our control. Import taxes are not included in the cost of shipping or handling your order.



Product Info

Built for on-location multi camera PTZ workflows in mind, the Fiber Dispatch 4 converts 4 pairs of SDI In/Out 4K video + IP LAN signals into 4 optical fiber outputs, using robust Neutrik OpticalCon Duo connectors.   It is very similar to the Fiber Dispatch 5 12G, the difference is the added 1G LAN port at the back, adding LAN communication to all 4 fiber outputs, which makes it ideal for PTZ cameras!

- Standard 1U rack design

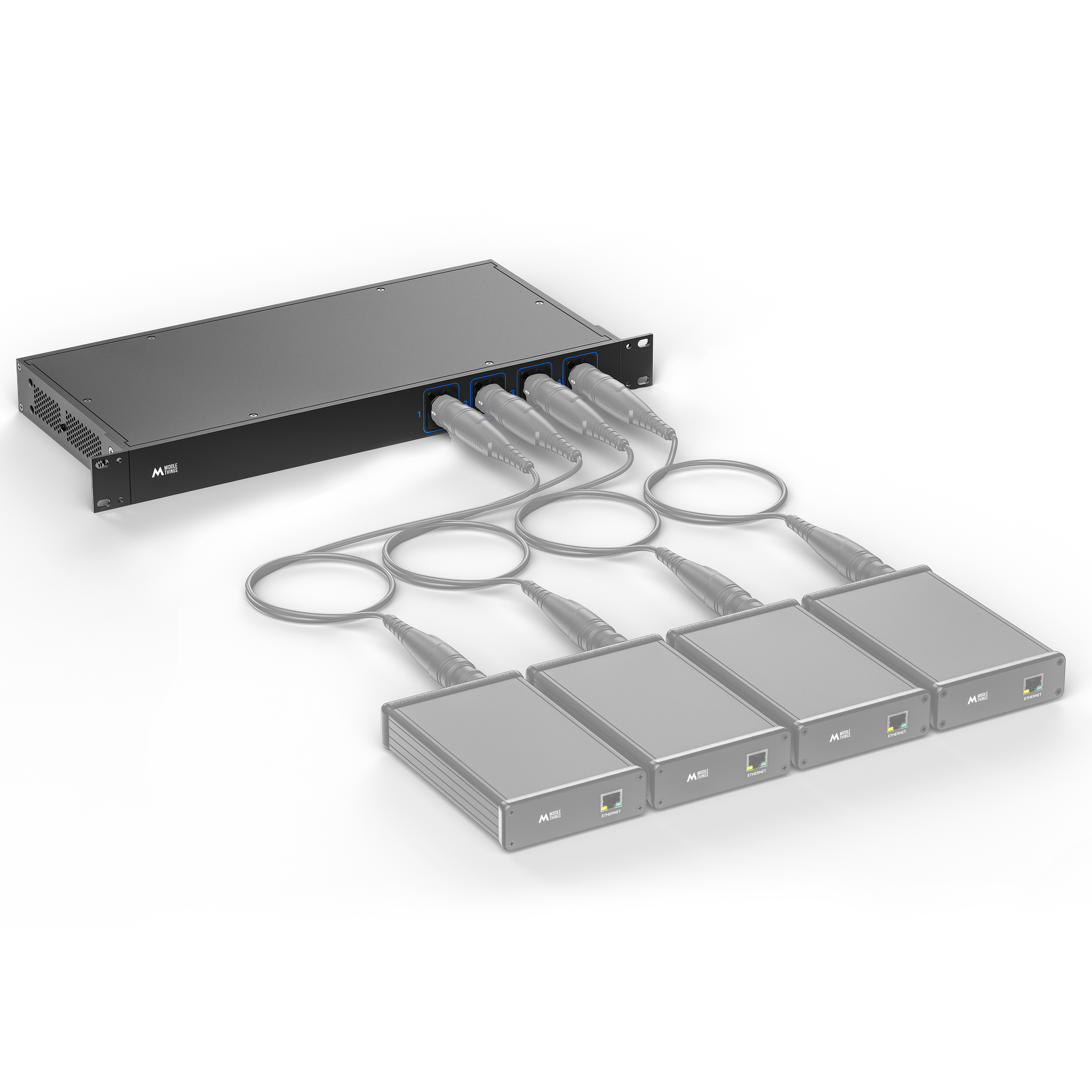

Thanks to a compact 1U rack design, the Fiber Dispatch 4 converter will sit perfectly inside your existing video rack, allowing you to connect up to 4 PTZ cameras using the Fiber Camera Box PTZ (Slave version). Built-in fans ensure proper cooling of all the converters for a hassle free workflow.

- Made for efficiency and 4K over long distances

Ever felt the time-consuming task of pulling three different SDI cables to a single camera , one for the video input, on for the return feed, and one for the LAN control ? The Fiber Dispatch 4 merges each of these cable triplets into Duo Optical fiber cables, which are more lightweight and much more reliable than traditional copper BNC cables since they are insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts.

- Industry standard & widespread fiber connector

The Neutrik Optical ConDuo connector makes this converter compatible both with widespread LC / LC fiber cables, as well as the rugged Optical Con Advanced Duo & Duo Lite cables by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.

- Compatibility

The Fiber Dispatch 4 can be used with the Middle Things Fiber Camera Box PTZ 12G - Standard Version (Slave) . It is not compatible with the Master version of the camera box, since the Dispatch 4 is a Master. It supports single mode LC optical fiber cables, as well as Neutrik OpticalCon Duo and OpticalCon Duo Lite cables. Supported SDI video signals are 3G, 6G, and 12G  (max  2160p60 )


Technical Specifications

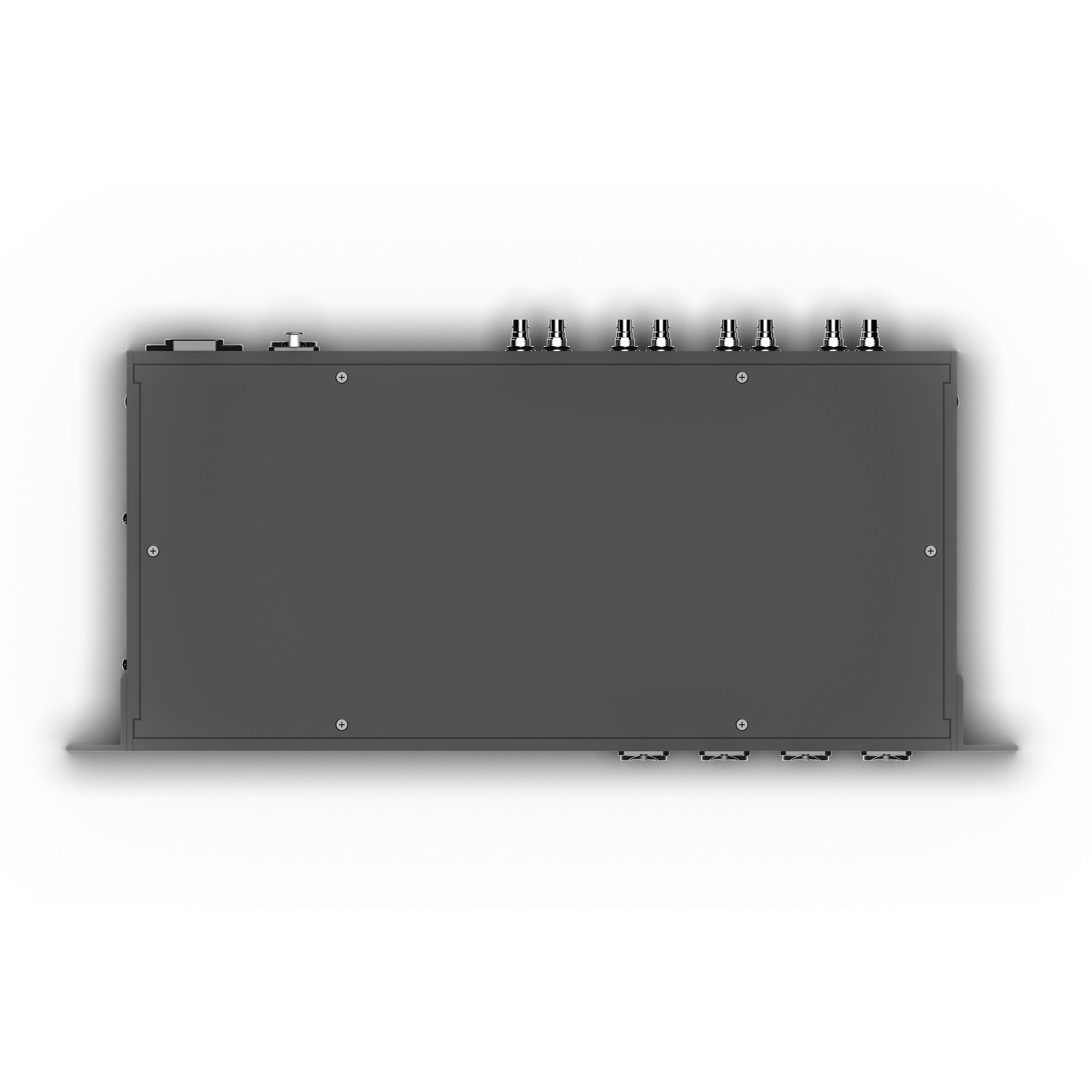

  • I/O connections: 4x SDI In, 4x SDI Out, 1x LAN 1G, 4x Neutrik OpticalCon Duo LC , AC Power.
  • Input Voltage : 85V ~ 264V AC
  • Power Consumption :
  • Fiber type : Single Mode
  • Height : 4.5cm / 1.8 inch
  • Width : 48cm /18.9 inch
  • Depth : 22.5cm / 8.9 inch
  • Weight : 3.0kg / 6.6 lbs
  • Storage Temperature : 14 to 140°F / -10 to 60°C
  • Package Weight :  3kg  / 6.6  lb
  • Box Dimensions (LxWxH) : 52cm x 25cm x 8cm |  20.5”x 9.84” x 3.15”

In The Box :

  • 1x 1U Fiber Dispatch 4 PTZ 12G
