Product Info
- Two cables in one, made for efficiency and long distances
Ever felt the time-consuming task of pulling two different SDI cables to a single camera , one for the input and on for the return feed ? The Fiber Camera Box 6G merges these two cables into one single Optical fiber cable, which is more lightweight and much more reliable than traditional copper BNC cables since it is insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts…. in 4K!
- Rugged converter, designed for field use
The compact size and aluminum body of the converter makes it ideal for on-camera use. Featuring both an SDI Input and SDI Output, the camera operator can also receive the program video (or any other video) from the control room. Since the Blackmagic Camera Control & Talkback protocol is also supported, it is the perfect companion for an URSA Broadcast , an URSA Mini or a Studio Camera 4K Pro. A D-Tap to barrel 12V is included so that you can power the converter from your camera.
- Industry standard & widespread fiber connector
The Neutrik Optical ConDuo connector makes this converter compatible both with widespread LC / LC fiber cables, as well as the rugged Optical Con Advanced Duo & Duo Lite cables by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.
- Many possibilities with the Middle Fiber products

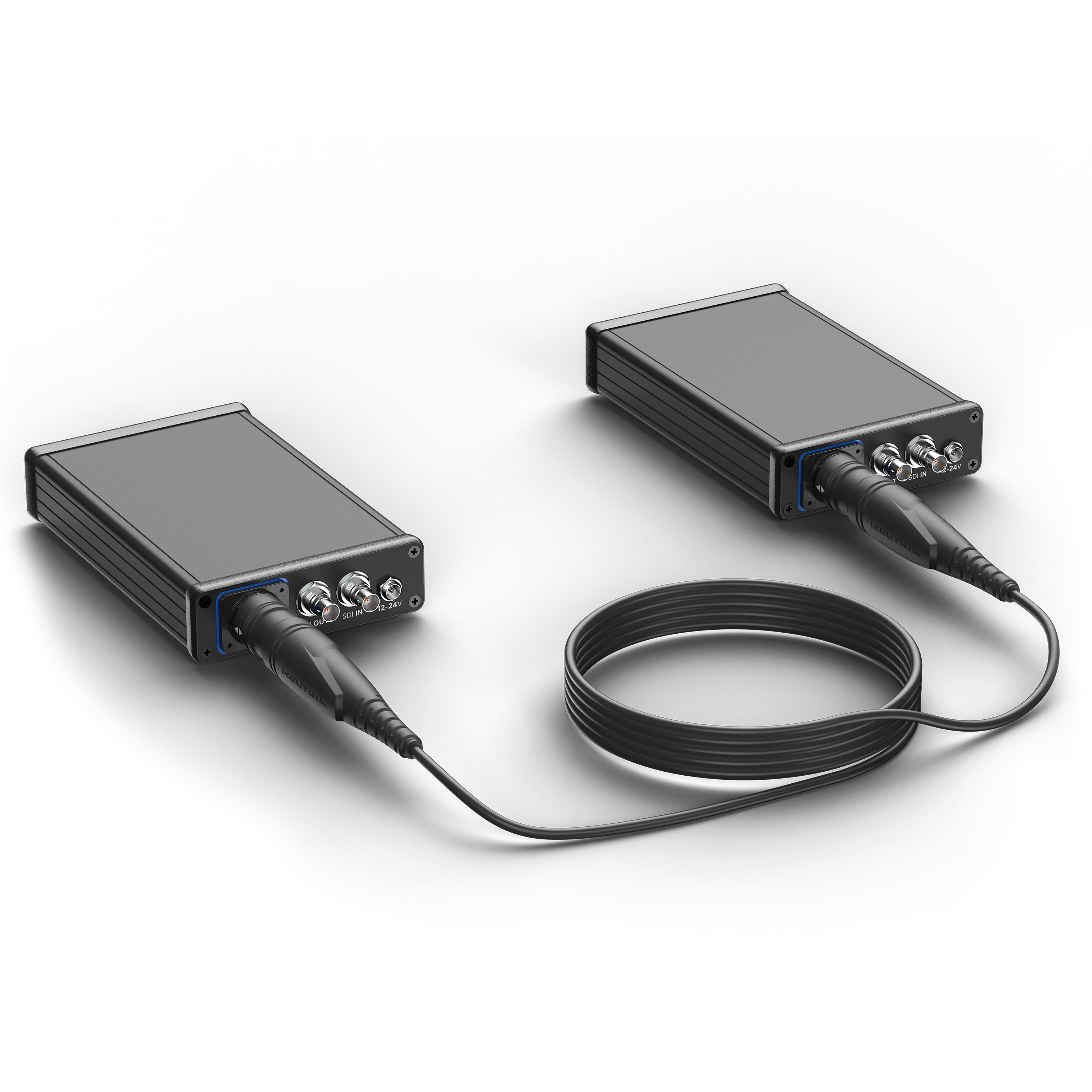

Paired with a Fiber Dispatch, a Fiber Unite or a Fiber Bridge , unleash many configurations that will greatly improve your day to day multicamera workflow!
The Fiber Camera Box 12G can be used with the Middle Things Dispatch 5 , Bridge 5, Bridge 10, as well as the Blackmagic Mini Converter Optical Fiber 12G converter with 3G, 6G or 12G SFP modules. Supported SDI video signals are 3G, 6G and 12G (max 2160p60 )
Technical Specifications

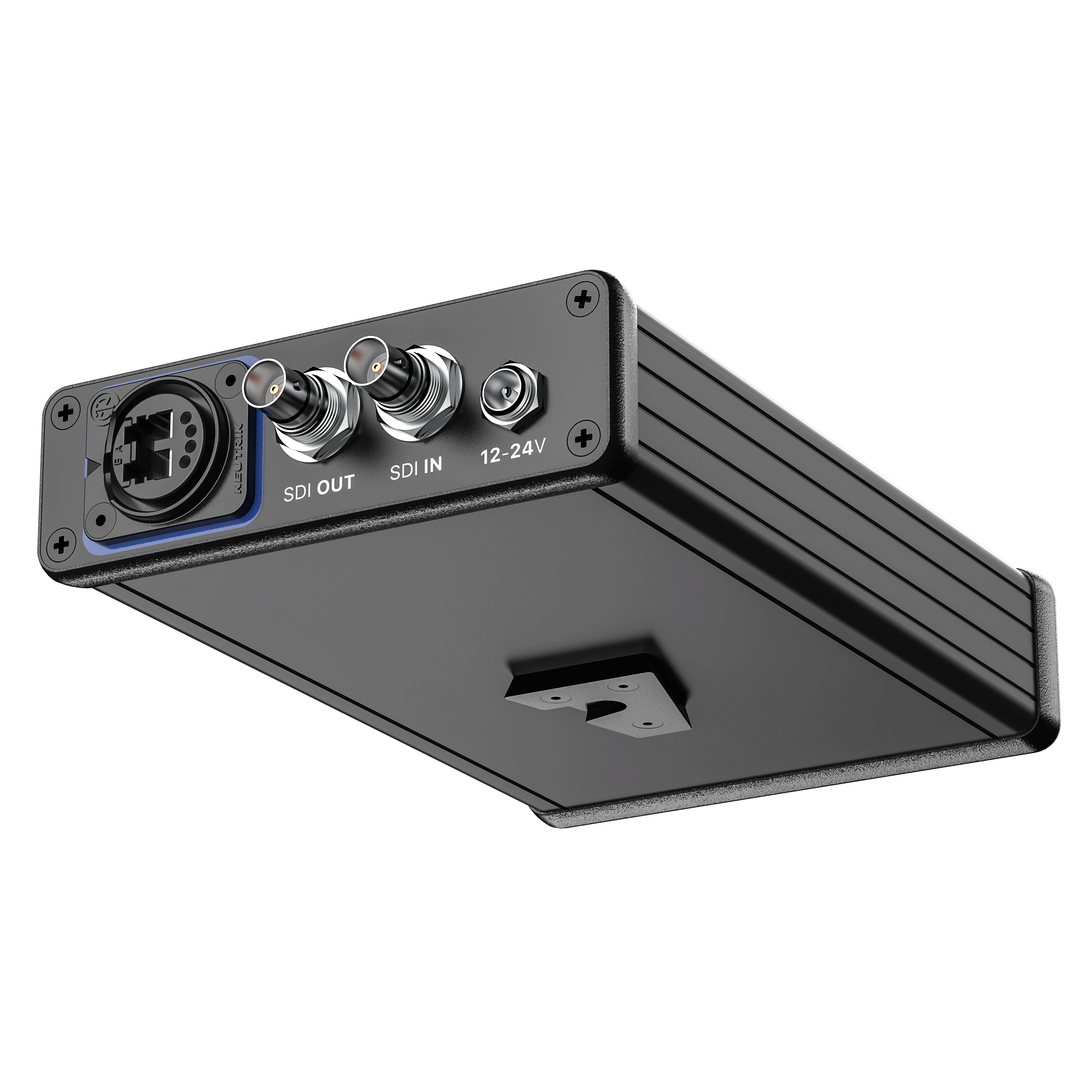

- I/O connections: 12-24V DC IN , SDI IN , SDI OUT (up to 12G) , Neutrik OpticalCon Duo LC
- Input Voltage : 12-24V DC
- Power Consumption :
- Fiber type : Single Mode
- Length :18cm / 7.1 inch
- Width : 10.5cm / 3.95 inch
- Depth : 3.5cm / 1.2 inch
- Weight : 360g / 0.79 lbs
- Storage Temperature : 14 to 140°F / -10 to 60°C
- Package Weight : 0.5kg / 1.1 lb
- Box Dimensions (LxWxH) : 20cm x 14cm x 8cm | 7.87”x 5.5” x 3.1”
In The Box :
- 1x Fiber Camera Box 12G
- 1x DC 12v to DTAP cable
- 2x 15cm BNC Cables
- 1x VLock mount adapter
