Fiber Bridge 10 12G
Fiber Bridge 10 12G Fiber Bridge 10 12G Fiber Bridge 10 12G Fiber Bridge 10 12G Fiber Bridge 10 12G Fiber Bridge 10 12G

Fiber Bridge 10 12G

Tax excluded. Prices are in USD.
🟢 In Stock . Ships within 24-48 hours.
🟠 On Back-Order. Contact us for lead time.

Shipping, Taxes & Duties

Shipments are sent through DHL Express. Orders are shipped from our warehouse in Europe. International orders may be subject to customs duties, taxes, and fees required for the shipment’s entry into the destination country.

Customs, duties and taxes vary from country to country and are out of our control. Import taxes are not included in the cost of shipping or handling your order.


Product Info

The Fiber Bridge 10 splits a Neutrik opticalCON MTP® 24 fiber cable into 10 different OpticalCON Duo pairs + 2 LAN, and vice versa (reversible)



- Stage box with reversible design

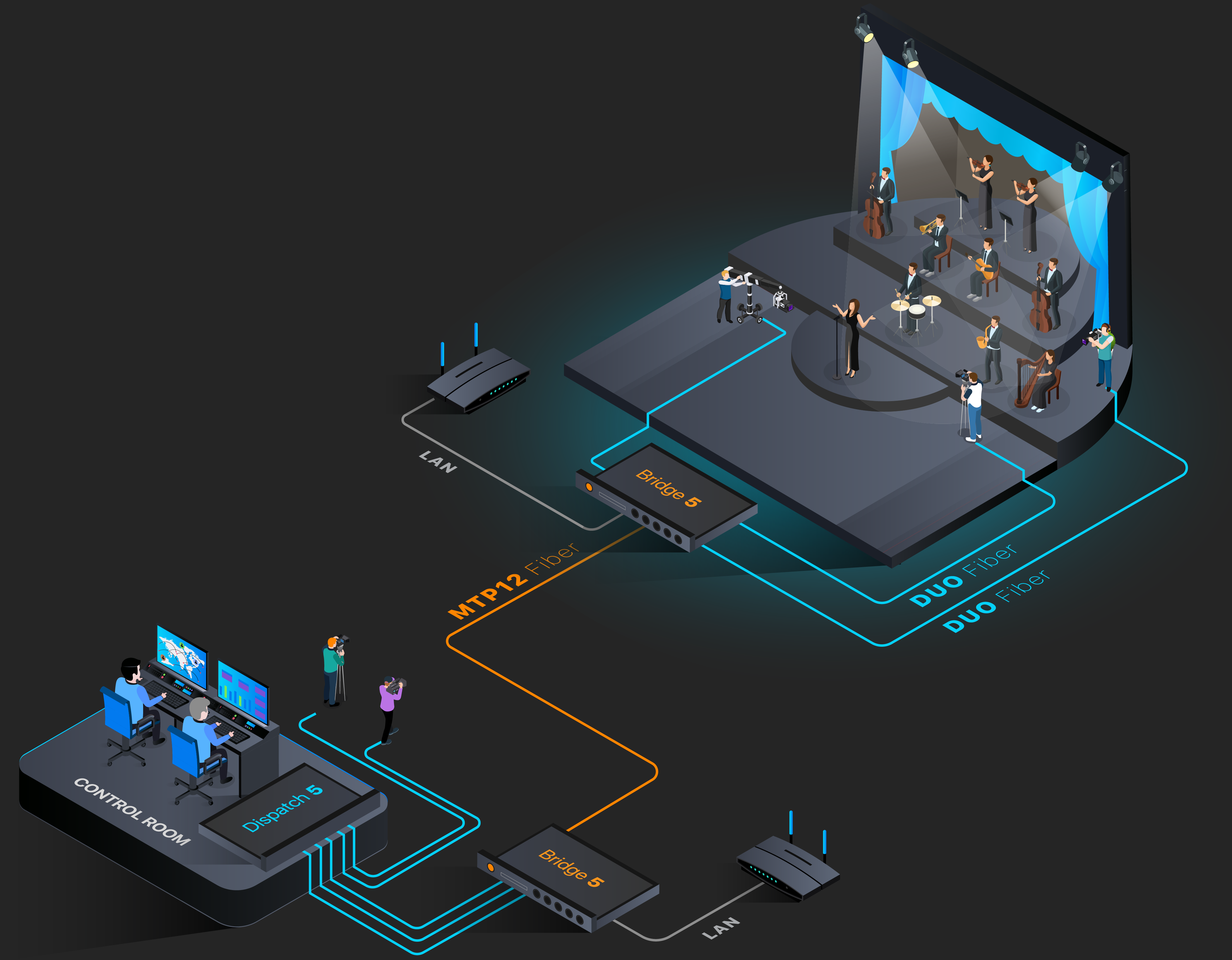

The Fiber Bridge 10 allows you to have only one cable running from the control room to the stage. On the stage, the Fiber Bridge 10 acts as a stage box that splits the Neutrik opticalCON MTP® 24 fiber cable into 10 different OpticalCON Duo pairs + 2x LAN, and vice versa. You can also use it in reverse and merge 10 OpticalCON Duo pairs + 2x LAN into one single  opticalCON MTP® 24 fiber cable .

- Can run with zero power

The Fiber Bridge is a passive splitter, meaning that no power is required to operate it. However, if you plan to use the LAN connections, you need to provide +12V DC power using the barrel jack connector.

- Rugged fiber connector

The opticalCON MTP® 24 connector makes the Fiber Bridge compatible with the rugged opticalCON MTP® 24 cable drums by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the 12 fiber cores as soon as the cable is disconnected.

- Many possibilities with the Middle Fiber products

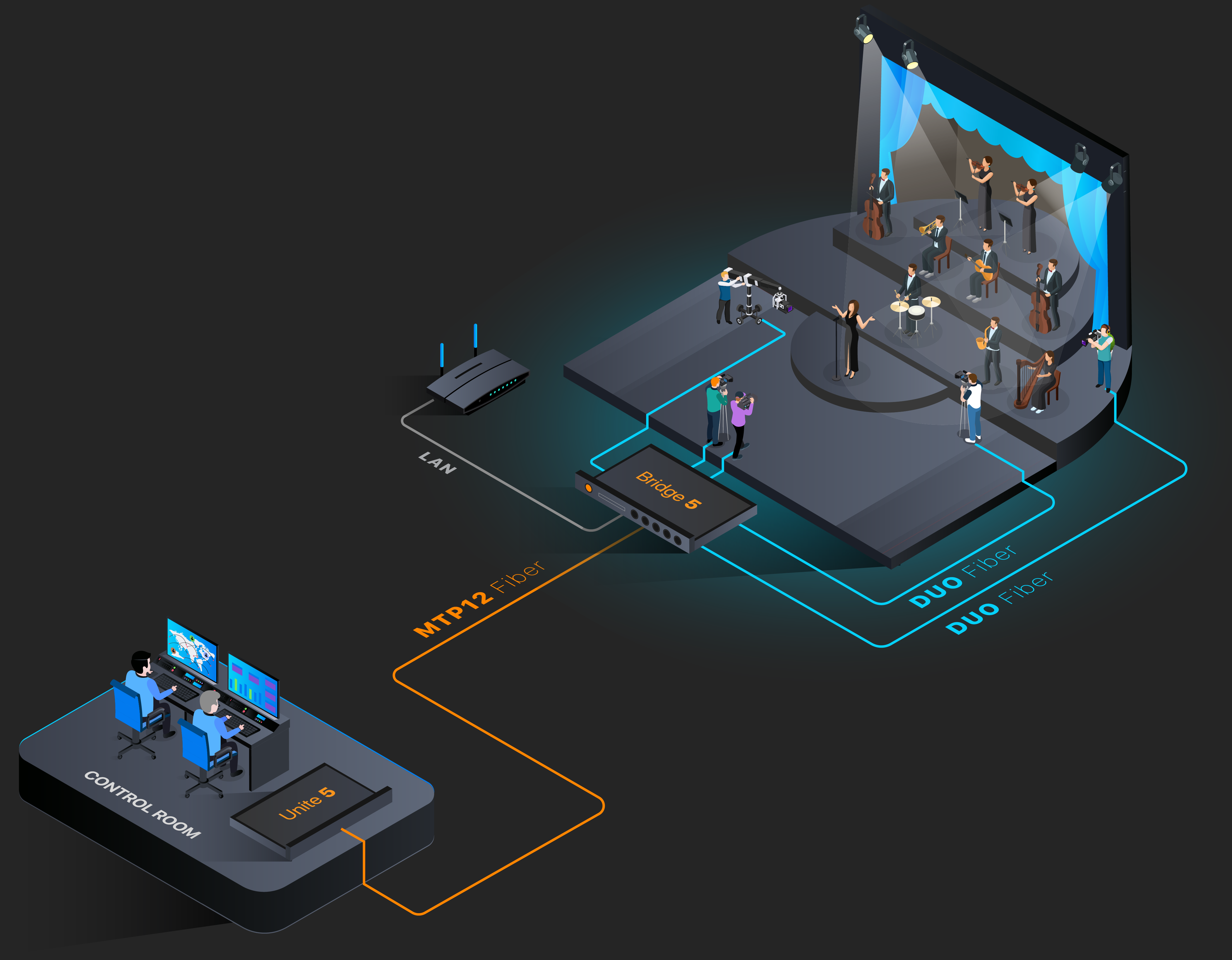

Paired with a Fiber Dispatch , a Fiber Unite or a Fiber Camera Box,, unleash many configurations that will greatly improve your day to day multicamera workflow!

The Fiber Bridge 10 can be used with the Fiber Bridge 10, Fiber Dispatch 5 6G, and Fiber Camera Box 6G. It supports single mode LC optical fiber cables, as well as Neutrik OpticalCon Duo and OpticalCon Duo Lite cables. The MTP® 24 connector  supports opticalCON MTP® 24 Cables.


Technical Specifications

  • I/O connections: 10x Neutrik OpticalCON Duo,  1x Neutrik opticalCON MTP® 24, 2x LAN ,+12V DC power.
  • Input Voltage : 12V DC
  • Power Consumption :
  • Fiber type : Single Mode
  • LAN support : 10/100/1000Mbps Full/Half Duplex
  • Power Consumption :
  • Height : 4.5cm / 1.8 inch
  • Width : 48cm /18.9 inch
  • Depth : 22.5cm / 8.9 inch
  • Weight : 2.5kg / 5.5 lbs
  • Storage Temperature : 14 to 140°F / -10 to 60°C
  • Package Weight :  3kg  / 6.6  lb
  • Box Dimensions (LxWxH) : 52cm x 25cm x 8cm |  20.5”x 9.84” x 3.15”


In The Box :

  • 1x 1U Fiber Bridge 10
